ZONE OFFROAD 6.5" RADIUS ARM LIFT KIT | 2013-2018 RAM 3500 DIESEL - D57N

This kit offers improved strength, performance, and ride quality over the standard drop bracket kit. Engineered to match the brawn of the 2013-2017 RAM 3500 4WD trucks, these systems upgrade the factory front radius arms and offer impressive handling characteristics on road while improving offroad performance and allowing for up to 37" tires to be installed. The new radius arms are a substantial upgrade to the factory stamped units and improve the ground clearance compared to drop bracket kits. The arms are fully boxed, internally gusseted and designed to bolt in the factory location while correcting the suspension geometry at 6.5'' of lift. At the frame mount, the arms utilize extra large, greaseable bushings to isolate road noise and vibrations while the axle mount is designed to retain the factory alignment cams for adjustability. The arms are formed inward to maximize tire clearance and looks great under the new RAM HDs.In addition to the new radius arms, this system gets its height from 6.5" progressive rate front coils designed for a smooth ride for unmatched highway and trail performance. Steering correction comes from a forged dropped pitman arm and a heavy duty, fully welded front track bar bracket is used at the frame to recenter the front axle securely under the truck. Rounding out the front of this 6.5" radius arm system are a pair of polyurethane extended bump stops, brake line relocation brackets, your choice of Zone hydro or Zone nitro shocks at all 4 corners, and all the necessary hardware to complete the install. Out back the rear is lifted using a 5" block and long u-bolts to level the stance and allow for up to 37" tires to be installed.

• 13-18 Ram 3500 4WD Diesel

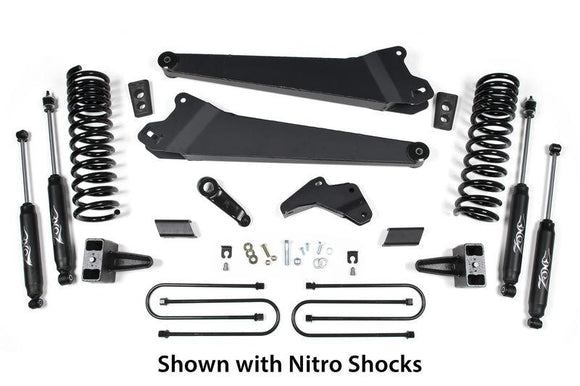

• *Kit images show upgraded Nitro (black) shocks*.
• Correct Suspension Geometry.
• Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs install. the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Not designed for factory rear airbag suspension models.
• Progressive Rate Coil Springs.
• Utilizes Heavy Duty Drop Brackets.
• Vehicles equipped with a two-piece drive shaft and a carrier bearing require optional bearing. drop kit D5405 Not designed for dually models.
